Architecture

How Nebula Logger's metadata is organized into four layers built natively on the Salesforce platform.

Nebula Logger is built natively on Salesforce - everything is built using Apex, Lightning components, and various types of objects.

All of the metadata is broken down into 4 layers/modules:

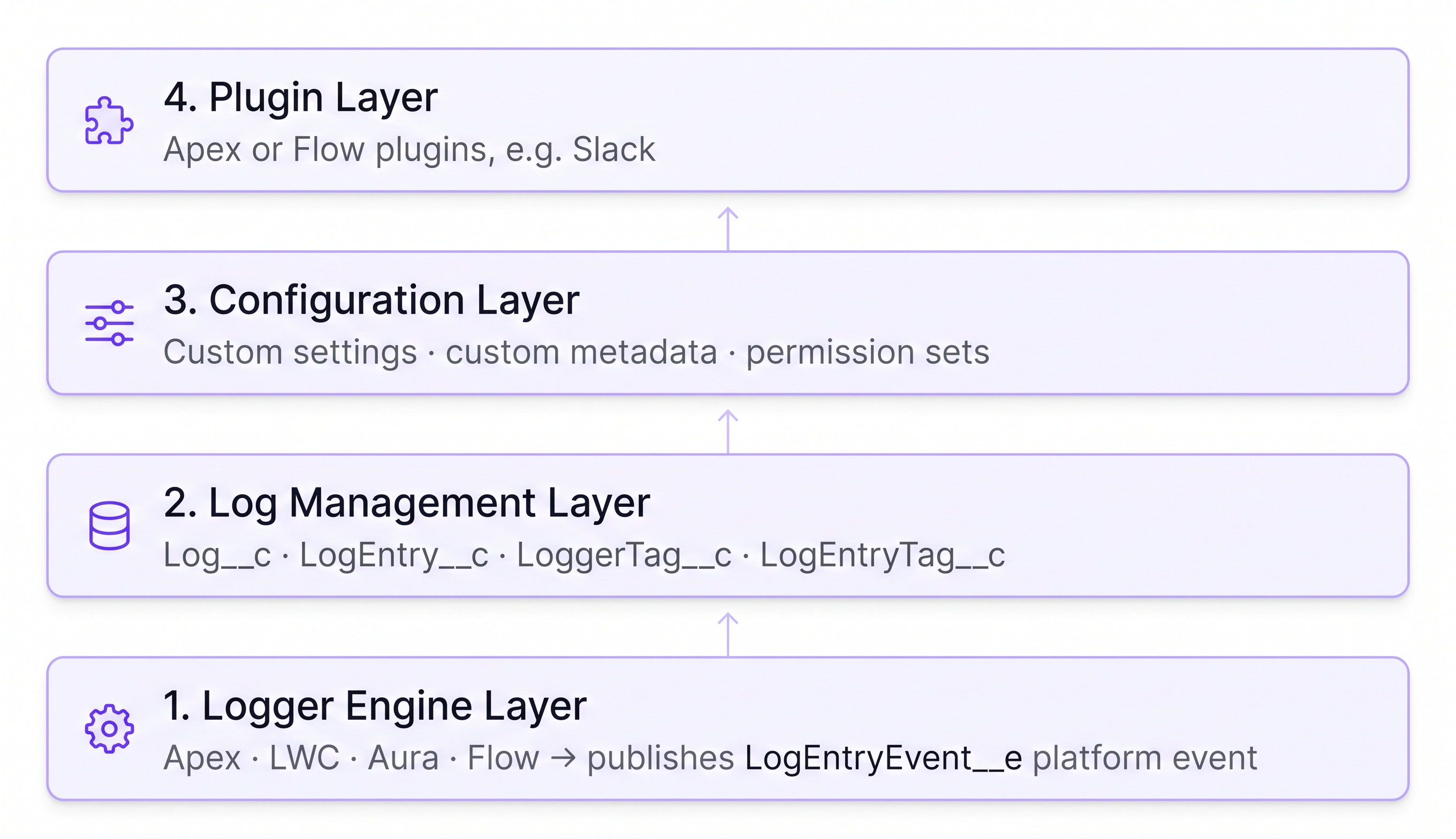

Nebula Logger's 4 architecture layers stacked bottom to top: Logger Engine (Apex, LWC, Aura, Flow, publishing LogEntryEvent__e), Log Management (Log__c, LogEntry__c, LoggerTag__c, LogEntryTag__c), Configuration (custom settings, custom metadata, permission sets), and Plugin (Apex or Flow plugins, e.g. Slack). — Each layer builds on the one below it — the engine publishes events, log management persists them, configuration governs both, and plugins extend log management.

1. Logger Engine Layer

The core of Nebula Logger that makes logging work.

2. Log Management Layer

View and manage logging data via the Logger Console app.

3. Configuration Layer

Custom settings, metadata types, and permission sets.

4. Plugin Layer

Add new functionality via plugins, such as Slack.

How the layers connect

1. Logger Engine Layer

The core of Nebula Logger that makes logging work. Currently, logging is supported for:

Apex
Lightning web components & Aura components
Flow, including a generic Flow log entry, a record-specific Flow log entry, and a collection-specific Flow log entry

This layer includes 1 platform event object:

LogEntryEvent__e platform event

2. Log Management Layer

This provides the ability to view and manage logging data, using the Logger Console Lightning app. This layer includes 4 custom objects:

Log__c custom object
LogEntry__c custom object
LogEntryTag__c custom object
LoggerTag__c custom object

3. Configuration Layer

Admins, developers, and architects can control & customize Nebula Logger’s built-in features, using custom settings, custom metadata types, and permission sets. This layer includes:

Category	Item	Purpose
Custom Hierarchy Settings	`LoggerSettings__c`	User-specific configurations
Custom Metadata Types	`LoggerParameter__mdt`	System-wide key-value pair configurations
Custom Metadata Types	`LogEntryDataMaskRule__mdt`	Configuring regex-based data masking rules
Custom Metadata Types	`LogStatus__mdt`	Configuring which picklist values in `Log__c.Status__c` map to `IsClosed__c` and `IsResolved__c`
Custom Metadata Types	`LogEntryTagRule__mdt`	Configuring tagging rules
Permission Sets	`LoggerAdmin`
Permission Sets	`LoggerLogViewer`
Permission Sets	`LoggerEndUser`
Permission Sets	`LoggerLogCreator`

4. Plugin Layer

This layer provides the ability to add new functionality to Nebula Logger by creating or installing plugins. Currently, a plugin is available for Slack, and other plugins are in development.
